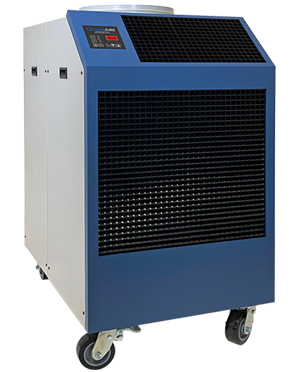

20ACH6034 Deluxe Portable Heat Pump and Spot Cooling Commercial Air Conditioner
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Heating Capacity is total BTUH at 70ºDB/60ºWB indoor, 47ºDB/43ºWB Outdoor
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- EER is determined at high fan speed, with condenser discharge air ducted into another area
- CFM with free discharge
- Amps & Watts at 460 Volts
COOLING AMBIENT OPERATING RANGE 65º TO 105º
HEATING AMBIENT OPERATING RANGE 40º TO 85º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 14.8 |
| COMPRESSOR HP | 5 |
| COMPRESSOR LRA | 60 |
| COMPRESSOR TYPE | SCROLL |
| COND CFM | 2200 |
| COND MOTOR HP | 1 |
| CONDENSATE TANK | PUMP AUTOMATIC (20′ Vertical Lift) |
| COOLING CAPACITY | 60,100 BTUH |
| DEPTH | 41.0″ |
| EER | 10.0 |
| EVAP CFM – HIGH | 1950 |
| EVAP MOTOR HP | 1 |
| HEATING CAPACITY | 53,500 BTUH |
| HEIGHT | 54.2″ |
| IN RUSH AMPS | 87 |
| NET WEIGHT | 520 lbs. |
| PLUG TYPE | L16-20P |
| REFRIGERANT CHARGE | 80 oz R-410A |
| VOLTAGE | 460V, 60 Hz, 3PH |
| TOTAL WATTS | 6000 |
| WIDTH | 28.2″ |
