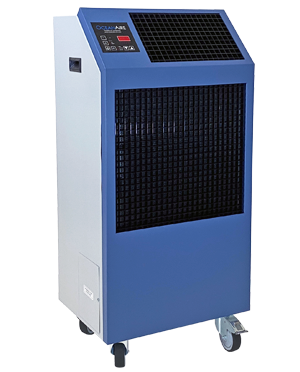

OWC2412 Deluxe Portable Water-Cooled Spot Cooling Air Conditioner
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- CFM with free discharge
- Amps & Watts at 208 Volts
- Also available with Quick Connect hose fittings
COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 9.9 |
| COMPRESSOR HP | 2 |
| COMPRESSOR LRA | 48 |
| COMPRESSOR TYPE | ROTARY |
| CONDENSATE REMOVAL | PUMP AUTOMATIC (20′ Vertical Lift) |
| CONDENSER WATER FLOW at 60⁰F WATER IN | 1.55 GPM |
| CONDENSER WATER FLOW at 85⁰F WATER IN | 6 GPM |
| COOLING CAPACITY | 23,950 BTUH |
| DEPTH | 16.0″ |
| EER | 11.4 |
| EVAP CFM – HIGH | 810 |
| EVAP MOTOR HP | 1/3 |
| HEIGHT | 45.7″ |
| IN RUSH AMPS | 55 |
| NET WEIGHT | 170 lbs. |
| PLUG TYPE | 6-20P, LCDI |
| REFRIGERANT CHARGE | 16 oz R-410A |
| VOLTAGE | 208-230V, 60 Hz, 1PH |
| WATER LINE CONNECTIONS (WATER IN-WATER OUT-DRAIN) | 3/8 MF |
| TOTAL WATTS | 2100 |
| WIDTH | 21.5″ |
