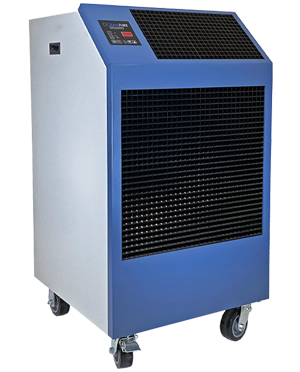

OWC6032 Deluxe Portable Water-Cooled Commercial Air Conditioner
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- CFM with free discharge
- Amps & Watts at 208 Volts
- Also available with Quick Connect hose fittings
COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 16.5 |
| COMPRESSOR HP | 5 |
| COMPRESSOR LRA | 137 |
| COMPRESSOR TYPE | SCROLL |
| CONDENSATE REMOVAL | PUMP AUTOMATIC (20′ Vertical Lift) |
| CONDENSER WATER FLOW at 60⁰F WATER IN | 3.8 GPM |
| CONDENSER WATER FLOW at 85⁰F WATER IN | 15.0 GPM |
| COOLING CAPACITY | 60,100 BTUH |
| DEPTH | 29.2″ |
| EER | 12.0 |
| EVAP CFM – HIGH | 1950 |
| EVAP MOTOR HP | 1 |
| HEIGHT | 53.2″ |
| IN RUSH AMPS | 149 |
| NET WEIGHT | 375 lbs. |
| PLUG TYPE | L15-30P |
| REFRIGERANT CHARGE | 52 oz R-410A |
| VOLTAGE | 208-230V, Hz 3PH |
| WATER LINE CONNECTIONS (WATER IN-WATER OUT-DRAIN) | WATER IN/OUT – 5/8 MF DRAIN – 3/8 MF |
| WIDTH | 28.2″ |
