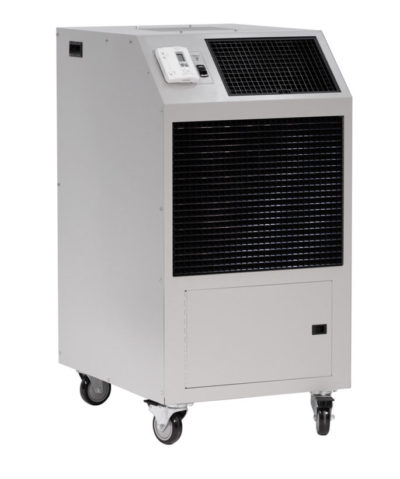

PAC1811 Portable Air-Cooled Spot Cooling Air Conditioner
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- EER is determined at high fan speed, with condenser discharge air ducted into another area
- CFM with free discharge
- Amps & Watts at 115 Volts
COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 14.1 |
| COMPRESSOR HP | 1 1/2 |
| COMPRESSOR LRA | 63 |
| COMPRESSOR TYPE | ROTARY |
| COND CFM | 930 |
| COND MOTOR HP | 1/8 |
| CONDENSATE TANK | 5 Gallon |
| COOLING CAPACITY | 16,800 BTHU |
| DEPTH | 29.5″ |
| EER | 10.0 |
| EVAP CFM – HIGH | 600 |
| EVAP MOTOR HP | 1/8 |
| HEIGHT | 46.7″ |
| IN RUSH AMPS | 75 |
| NET WEIGHT | 260 lbs. |
| PLUG TYPE | 5-20P, LCDI |
| REFRIGERANT CHARGE | 40 oz R-410A |
| VOLTAGE | 115V, 60 Hz, 1PH |
| TOTAL WATTS | 1670 |
| WIDTH | 24.0″ |
