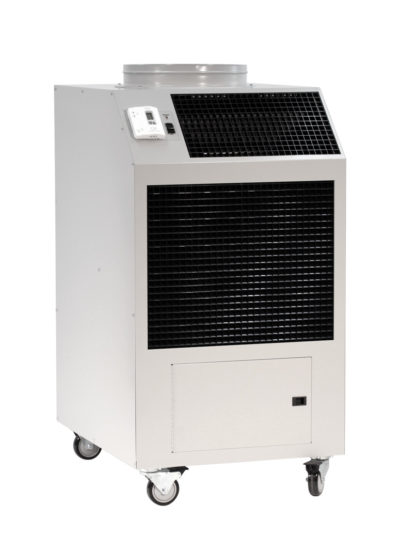

PAC3634 Air-Cooled Portable Commercial Air Conditioner
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- EER is determined at high fan speed, with condenser discharge air ducted into another area
- CFM with free discharge
- Amps & Watts at 460 Volts
COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 8.7 |
| COMPRESSOR HP | 3 |
| COMPRESSOR LRA | 35 |
| COMPRESSOR TYPE | SCROLL |
| COND CFM | 1390 |
| COND MOTOR HP | 1 |
| CONDENSATE TANK | 5 Gallon |
| COOLING CAPACITY | 36,050 BTUH |
| DEPTH | 37.0″ |
| EER | 10.0 |
| EVAP CFM – HIGH | 1200 |
| EVAP MOTOR HP | 1/3 |
| HEIGHT | 52.7″ |
| IN RUSH AMPS | 60 |
| NET WEIGHT | 380 lbs. |
| PLUG TYPE | L16-20P |
| REFRIGERANT CHARGE | 66 oz R-410A |
| VOLTAGE | 460V, 60 Hz, 3PH |
| TOTAL WATTS | 3620 |
| WIDTH | 27.2″ |
