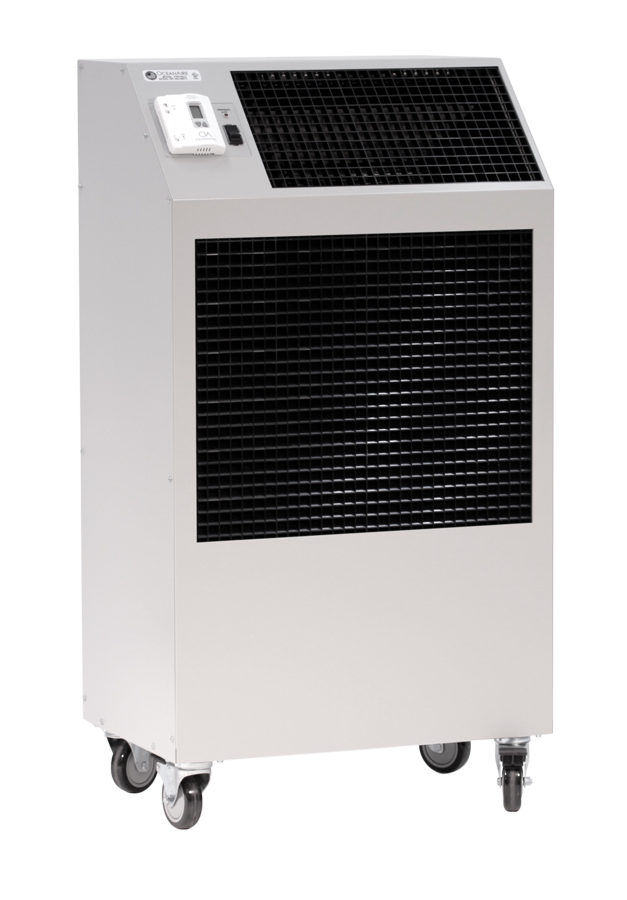

PWC3632 Portable Water-Cooled Commercial Spot Cooling Air Conditioner
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
- Cooling Capacity is total BTUH at 80ºDB/67ºWB return air, 95ºF Outdoor at high fan speed
- Dedicated Circuit and Time Delay fuses/circuit breakers are recommended
- CFM with free discharge
- Amps & Watts at 208 Volts
COOLING AMBIENT OPERATING RANGE 65º TO 105º
NOT APPROVED FOR OUTDOOR USE
The OceanAire Limited Warranty covers all OceanAire products; 1 year on the entire product plus, 4 additional years for the compressor (restrictions apply).
| AMPS | 9.3 |
| COMPRESSOR HP | 3 |
| COMPRESSOR LRA | 77 |
| COMPRESSOR TYPE | SCROLL |
| CONDENSATE REMOVAL | PUMP AUTOMATIC (20′ Vertical Lift) |
| CONDENSER WATER FLOW at 60⁰F WATER IN | 2.2 GPM |
| CONDENSER WATER FLOW at 85⁰F WATER IN | 9.0 GPM |
| COOLING CAPACITY | 36,100 BTUH |
| DEPTH | 19.5″ |
| EER | 13.4 |
| EVAP CFM – HIGH | 1200 |
| EVAP MOTOR AMPS | 3.5 |
| EVAP MOTOR HP | 1/3 |
| HEIGHT | 50.0″ |
| IN RUSH AMPS | 80 |
| NET WEIGHT | 275 lbs. |
| PLUG TYPE | L15-20P |
| REFRIGERANT CHARGE | 24 oz R-410A |
| VOLTAGE | 208-230V, 60 Hz, 3PH |
| TOTAL WATTS | 2700 |
| WIDTH | 27.2″ |
